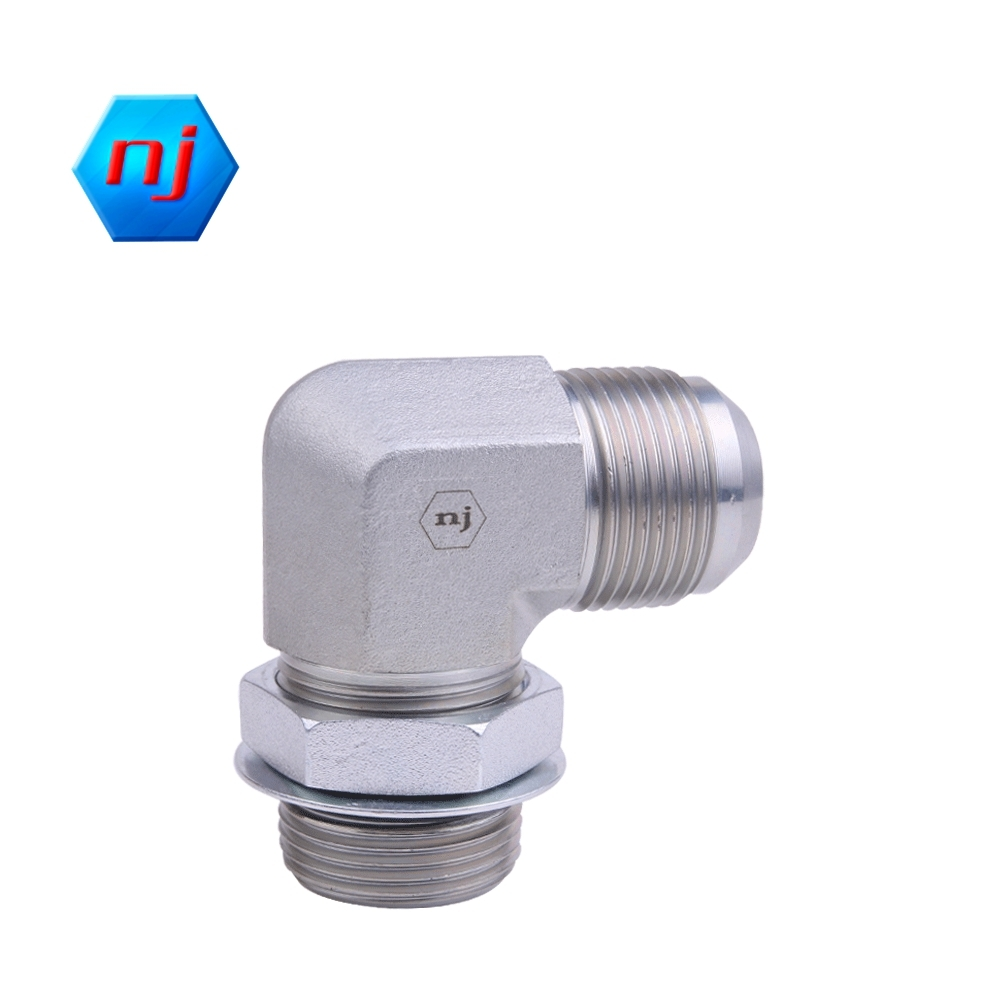

90° Elbow Male JIC To ORB Hydraulic Fitting 6801
Carbon steel high quality 90° elbow male JIC to ORB hydraulic adapter 6801 with Cr3+ zinc plating.
Thread 2 Type: Male O-Ring
Product Advantages
●Big stock 20000+ adapters for whole series size from 1/8” - 2”.
●Products will be delivery in 7 days.
●The products surface with Cr3+ zinc plating.
●Salt spray test 120 hours.
●You can buy any qty from from our stock.
Product Specifications
MJ-MAORB 90°;
NJ-6801-NWO Series;
1JO9-OG
| PART NO.SIZE |
TUBE 0.D. |
B1 SAE 37 |
B2 SAE ORB |
B1 DRILL |
B2 DRILL |
M LGTH |
M7 LGTH |
C HEX |
Y FLATS |
|
NJ-6801-02-02-NWO-FG |
1/8 |
5/16-24 |
5/16-24 |
0.062 |
0.062 |
0.77 |
0.94 |
0.438 |
0.438 |
|
NJ-6801-02-04-NWO-FG |
1/8 |
5/16-24 |
7/16-20 |
0.062 |
0.172 |
0.78 |
1.03 |
0.563 |
0.438 |
|
NJ-6801-03-03-NWO-FG |
3/16 |
3/8-24 |
3/8-24 |
0.125 |
0.125 |
0.83 |
0.94 |
0.500 |
0.438 |
|
NJ-6801-03-04-NWO-FG |
3/16 |
3/8-24 |
7/16-20 |
0.125 |
0.172 |
0.81 |
1.03 |
0.563 |
0.438 |
|
NJ-6801-04-02-NWO-FG |
1/4 |
7/16-20 |
5/16-24 |
0.172 |
0.062 |
0.89 |
0.92 |
0.438 |
0.438 |
|
NJ-6801-04-03-NWO-FG |
1/4 |
7/16-20 |
3/8-24 |
0.172 |
0.125 |
0.89 |
0.92 |
0.500 |
0.438 |
|
NJ-6801-04-04-NWO-FG |
1/4 |
7/16-20 |
7/16-20 |
0.172 |
0.172 |
0.89 |
1.03 |
0.563 |
0.438 |
|
NJ-6801-04-05-NWO-FG |
1/4 |
7/16-20 |
1/2-20 |
0.172 |
0.234 |
0.95 |
1.13 |
0.625 |
0.562 |
|
NJ-6801-04-06-NWO-FG |
1/4 |
7/16-20 |
9/16-18 |
0.172 |
0.297 |
1.05 |
1.25 |
0.688 |
0.562 |
|
NJ-6801-04-08-NWO-FG |
1/4 |
7/16-20 |
3/4-16 |
0.172 |
0.391 |
1.12 |
1.45 |
0.875 |
0.750 |
|
NJ-6801-05-04-NWO-FG |
5/16 |
1/2-20 |
7/16-20 |
0.234 |
0.172 |
0.95 |
1.13 |
0.563 |
0.562 |
|
NJ-6801-05-05-NWO-FG |
5/16 |
1/2-20 |
1/2-20 |
0.234 |
0.234 |
0.95 |
1.13 |
0.625 |
0.562 |
|
NJ-6801-05-06-NWO-FG |
5/16 |
1/2-20 |
9/16-18 |
0.234 |
0.297 |
1.05 |
1.25 |
0.688 |
0.562 |
|
NJ-6801-05-08-NWO-FG |
5/16 |
1/2-20 |
3/4-16 |
0.234 |
0.391 |
1.12 |
1.45 |
0.875 |
0.750 |
|
NJ-6801-05-10-NWO-FG |
5/16 |
1/2-20 |
7/8-14 |
0.234 |
0.484 |
1.21 |
1.70 |
1.000 |
0.875 |
|
NJ-6801-06-02-NWO-FG |
3/8 |
9/16-18 |
5/16-24 |
0.297 |
0.062 |
1.06 |
1.08 |
0.438 |
0.562 |
|
NJ-6801-06-04-NWO-FG |
3/8 |
9/16-18 |
7/16-20 |
0.297 |
0.172 |
1.06 |
1.19 |
0.563 |
0.562 |
|
NJ-6801-06-05-NWO-FG |
3/8 |
9/16-18 |
1/2-20 |
0.297 |
0.234 |
1.06 |
1.19 |
0.625 |
0.562 |
|
NJ-6801-06-06-NWO-FG |
3/8 |
9/16-18 |
9/16-18 |
0.297 |
0.297 |
1.06 |
1.25 |
0.688 |
0.562 |
|
NJ-6801-06-08-NWO-FG |
3/8 |
9/16-18 |
3/4-16 |
0.297 |
0.391 |
1.14 |
1.45 |
0.875 |
0.750 |
|
NJ-6801-06-10-NWO-FG |
3/8 |
9/16-18 |
7/8-14 |
0.297 |
0.484 |
1.22 |
1.70 |
1.000 |
0.875 |
|
NJ-6801-06-12-NWO-FG |
3/8 |
9/16-18 |
1-1/16-12 |
0.297 |
0.609 |
1.31 |
1.94 |
1.250 |
1.062 |
|
NJ-6801-08-04-NWO-FG |
1/2 |
3/4-16 |
7/16-20 |
0.391 |
0.172 |
1.25 |
1.26 |
0.563 |
0.750 |
|
NJ-6801-08-05-NWO-FG |
1/2 |
3/4-16 |
1/2-20 |
0.391 |
0.234 |
1.25 |
1.26 |
0.625 |
0.750 |
|
NJ-6801-08-06-NWO-FG |
1/2 |
3/4-16 |
9/16-18 |
0.391 |
0.297 |
1.25 |
1.32 |
0.688 |
0.750 |
|
NJ-6801-08-08-NWO-FG |
1/2 |
3/4-16 |
3/4-16 |
0.391 |
0.391 |
1.25 |
1.45 |
0.875 |
0.750 |
|
NJ-6801-08-10-NWO-FG |
1/2 |
3/4-16 |
7/8-14 |
0.391 |
0.484 |
1.33 |
1.70 |
1.000 |
0.875 |
|
NJ-6801-08-12-NWO-FG |
1/2 |
3/4-16 |
1-1/16-12 |
0.391 |
0.609 |
1.42 |
1.94 |
1.250 |
1.062 |
|
NJ-6801-08-16-NWO-FG |
1/2 |
3/4-16 |
1-5/16-12 |
0.391 |
0.844 |
1.52 |
2.05 |
1.500 |
1.312 |
|
NJ-6801-10-06-NWO-FG |
5/8 |
7/8-14 |
9/16-18 |
0.484 |
0.297 |
1.45 |
1.41 |
0.688 |
0.875 |
|
NJ-6801-10-08-NWO-FG |
5/8 |
7/8-14 |
3/4-16 |
0.484 |
0.391 |
1.45 |
1.54 |
0.875 |
0.875 |
|
NJ-6801-10-10-NWO-FG |
5/8 |
7/8-14 |
7/8-14 |
0.484 |
0.484 |
1.45 |
1.70 |
1.000 |
0.875 |
|
NJ-6801-10-12-NWO-FG |
5/8 |
7/8-14 |
1-1/16-12 |
0.484 |
0.609 |
1.54 |
1.94 |
1.250 |
1.062 |
|
NJ-6801-10-14-NWO-FG |
5/8 |
7/8-14 |
1-3/16-12 |
0.484 |
0.719 |
1.65 |
2.00 |
1.375 |
1.312 |
|
NJ-6801-10-16-NWO-FG |
5/8 |
7/8-14 |
1-5/16-12 |
0.484 |
0.844 |
1.64 |
2.05 |
1.500 |
1.312 |
|
NJ-6801-10-20-NWO-FG |
5/8 |
7/8-14 |
1-5/8-12 |
0.484 |
1.078 |
1.84 |
2.25 |
1.875 |
1.625 |
|
NJ-6801-12-06-NWO-FG |
3/4 |
1-1/16-12 |
9/16-18 |
0.609 |
0.297 |
1.66 |
1.49 |
0.688 |
1.062 |
|
NJ-6801-12-08-NWO-FG |
3/4 |
1-1/16-12 |
3/4-16 |
0.609 |
0.391 |
1.66 |
1.62 |
0.875 |
1.062 |
|
NJ-6801-12-10-NWO-FG |
3/4 |
1-1/16-12 |
7/8-14 |
0.609 |
0.484 |
1.66 |
1.78 |
1.000 |
1.062 |
|
NJ-6801-12-12-NWO-FG |
3/4 |
1-1/16-12 |
1-1/16-12 |
0.609 |
0.609 |
1.66 |
1.94 |
1.250 |
1.062 |
|
NJ-6801-12-14-NWO-FG |
3/4 |
1-1/16-12 |
1-3/16-12 |
0.609 |
0.719 |
1.77 |
2.00 |
1.375 |
1.312 |
|
NJ-6801-12-16-NWO-FG |
3/4 |
1-1/16-12 |
1-5/16-12 |
0.609 |
0.844 |
1.76 |
2.05 |
1.500 |
1.312 |
|
NJ-6801-12-20-NWO-FG |
3/4 |
1-1/16-12 |
1-5/8-12 |
0.609 |
1.078 |
1.97 |
2.25 |
1.875 |
1.625 |
|
NJ-6801-14-12-NWO-FG |
7/8 |
1-3/16-12 |
1-1/16-12 |
0.719 |
0.609 |
1.80 |
2.00 |
1.250 |
1.312 |
|
NJ-6801-14-14-NWO-FG |
7/8 |
1-3/16-12 |
1-3/16-12 |
0.719 |
0.719 |
1.80 |
2.00 |
1.375 |
1.312 |
|
NJ-6801-14-16-NWO-FG |
7/8 |
1-3/16-12 |
1-5/16-12 |
0.719 |
0.844 |
1.79 |
2.05 |
1.500 |
1.312 |
|
NJ-6801-16-08-NWO-FG |
1 |
1-5/16-12 |
1-5/8-12 |
0.844 |
0.391 |
1.81 |
1.73 |
0.875 |
1.312 |
|
NJ-6801-16-10-NWO-FG |
1 |
1-5/16-12 |
7/8-14 |
0.844 |
0.484 |
1.81 |
1.89 |
1.000 |
1.312 |
|
NJ-6801-16-12-NWO-FG |
1 |
1-5/16-12 |
1-1/16-12 |
0.844 |
0.609 |
1.81 |
2.05 |
1.250 |
1.312 |
|
NJ-6801-16-14-NWO-FG |
1 |
1-5/16-12 |
1-3/16-12 |
0.844 |
0.719 |
1.81 |
2.05 |
1.375 |
1.312 |
|
NJ-6801-16-16-NWO-FG |
1 |
1-5/16-12 |
1-5/16-12 |
0.844 |
0.844 |
1.81 |
2.05 |
1.500 |
1.312 |
|
NJ-6801-16-20-NWO-FG |
1 |
1-5/16-12 |
1-5/8-12 |
0.844 |
1.078 |
2.01 |
2.25 |
1.875 |
1.625 |
|
NJ-6801-16-24-NWO-FG |
1 |
1-5/16-12 |
1-7/8-12 |
0.844 |
1.312 |
2.16 |
2.39 |
2.125 |
1.875 |
|
NJ-6801-20-12-NWO-FG |
1-1/4 |
1-5/8-12 |
1-1/16-12 |
1.078 |
0.609 |
2.06 |
2.25 |
1.250 |
1.625 |
|
NJ-6801-20-14-NWO-FG |
1-1/4 |
1-5/8-12 |
1-3/16-12 |
1.078 |
0.719 |
2.06 |
2.25 |
1.375 |
1.625 |
|
NJ-6801-20-16-NWO-FG |
1-1/4 |
1-5/8-12 |
1-5/16-12 |
1.078 |
0.844 |
2.06 |
2.25 |
1.500 |
1.625 |
|
NJ-6801-20-20-NWO-FG |
1-1/4 |
1-5/8-12 |
1-5/8-12 |
1.078 |
1.078 |
2.06 |
2.25 |
1.875 |
1.625 |
|
NJ-6801-20-24-NWO-FG |
1-1/4 |
1-5/8-12 |
1-7/8-12 |
1.078 |
1.312 |
2.20 |
2.39 |
2.125 |
1.875 |
|
NJ-6801-24-16-NWO-FG |
1-1/2 |
1-7/8-12 |
1-5/16-12 |
1.312 |
0.844 |
2.33 |
2.39 |
1.500 |
1.875 |
|
NJ-6801-24-20-NWO-FG |
1-1/2 |
1-7/8-12 |
1-5/8-12 |
1.312 |
1.078 |
2.33 |
2.39 |
1.875 |
1.875 |
|
NJ-6801-24-24-NWO-FG |
1-1/2 |
1-7/8-12 |
1-7/8-12 |
1.312 |
1.312 |
2.33 |
2.39 |
2.125 |
1.875 |
|
NJ-6801-24-32-NWO-FG |
2 |
1-7/8-12 |
2-1/2-12 |
1.312 |
1.781 |
2.81 |
2.89 |
2.750 |
2.500 |
|
NJ-6801-32-24-NWO-FG |
2 |
2-1/2-12 |
1-7/8-12 |
1.781 |
1.312 |
3.06 |
2.89 |
2.125 |
2.500 |
|
NJ-6801-32-32-NWO-FG |
2 |
2-1/2-12 |
2-1/2-12 |
1.781 |
1.781 |
3.06 |
2.89 |
2.750 |
2.500 |
